Marine products
Product name

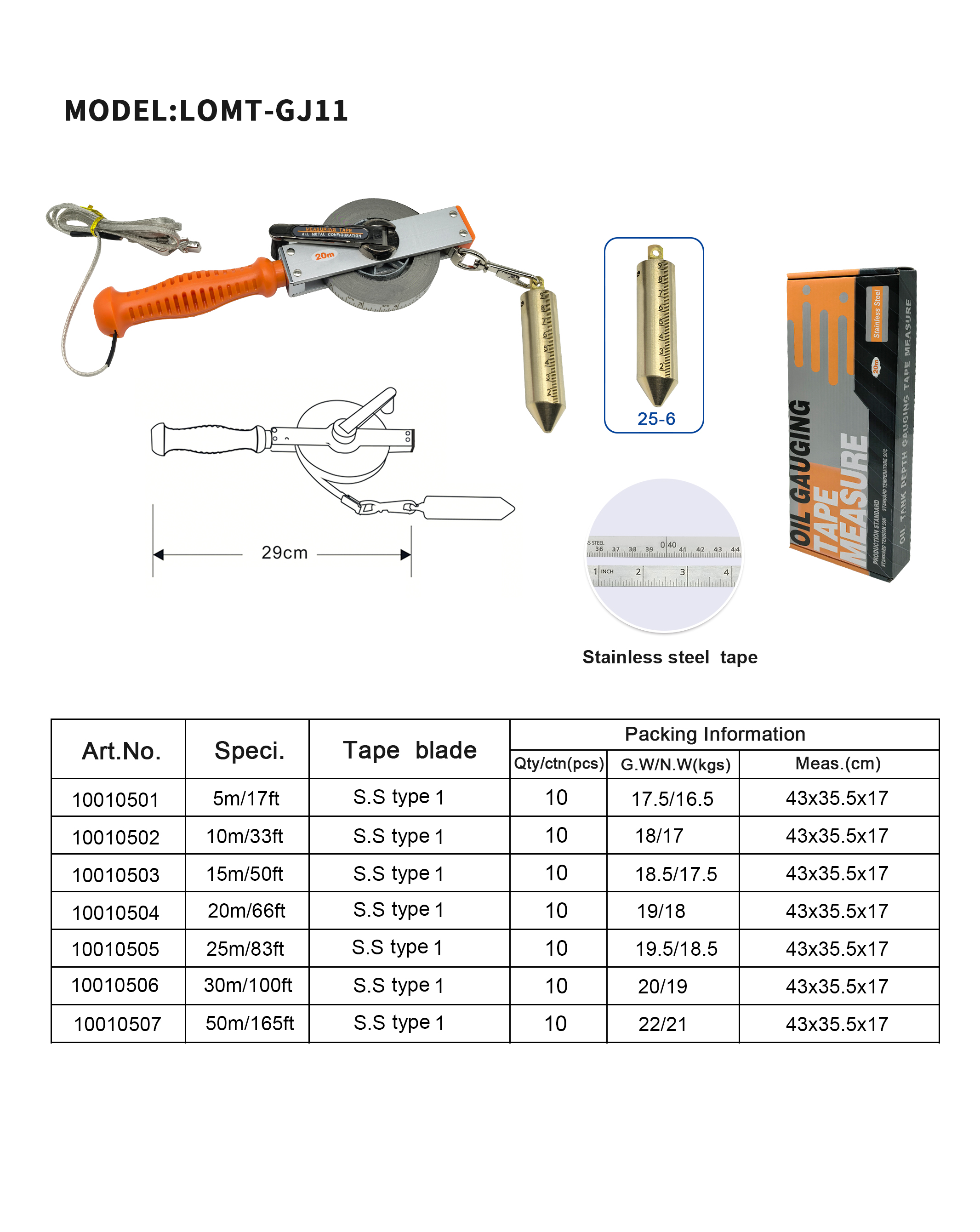

LOMT-GJ11 oil gauging tape with condutor wire of releasing static
Product description
Speci.
Tape blade
Packing information
QTY/CTN(PCS)
G.W/N.W(KGS)
MEAS.(CM)
10m/33ft
Stainless steel
10
18/17
43x35.5x17
15m/50ft
Stainless steel
10
18.5/17.5
43x35.5x17
20m/66ft
Stainless steel
10
19/18
43x35.5x17
30m/100ft
Stainless steel
10
20/19
43x35.5x17
50m/165ft
Stainless steel
10
22/21
43x35.5x17
Operating instruction
1. This product is only suitable for measuring liquid depth of neutral room temperature properties, such as water,
various oils,etc.
2. The BOB connection should be checked and confirmed to be firm and reliable before use. Hand-held rocker to
make the blade and BOB fall freely perpendicular to the liquid at uniform speed, after the Bob falls to the bottom
of the liquid, the accuracy of the measurement can be guaranteed only when the blade is raised to a straight line
state.
3. End of use, wipe the blade and Bob clean then tighten tape, and store it in a ventilated and try place.
4. The accuracy of the tape is in accordance with the following formula:
= +/- (0.3+0.2L) - Permissible indication error L - Integer meters
The environment of verify is temperature 20C, standrd tension 50N BOB bottom is zero position.
5. Warning:
1). It is forbidden to add other heavy objects to the hook of BOB.
2). It is forbidden to measure acidic liquids.
3). It is forbidden to measure alcoholic liquids.
4). It is forbidden to measure benzene liquids.
5). It is forbidden to measure high temperature liquids. (More than 80C)
6). It is forbidden to measure charged liquids.
